Available Mold Surface Size

  4”x4” / 10x10cm (straight edge with undulated surface)

     5”x5” / 12.5×12.5cm (wave edge with undulated surface)

  6”x6” / 15x15cm (straight edge with undulated surface)



  2.5”x5” / 6.25×12.5cm (wave edge with undulated surface)

     2.5”x10” / 6.35×25.4cm (straight edge with undulated surface)

  2”x12” / 5x30cm (straight edge with undulated surface)

  2”x12” / 5x30cm (straight edge with concave surface)



  3”x6” / 7.5x15cm (bevel)
               3”x6” / 7.5x15cm (straight edge with undulated surface)

     3”x12” / 7.5x30cm (straight edge with undulated surface)
                           3”x12” / 7.5x30cm (wave edge with undulated surface)

  3”x12” / 7.5x30cm (picket with undulated surface)




  4”x8” / 10x20cm (bevel)

     4”x12” / 10x30cm (bevel)

  4”x16” / 10x40cm (bevel)
                                  4”x16” / 10x40cm (straight edge with wave mold)





    4”x8” / 10x20cm (bevel)




    12”x24” / 30x60cm (rectified with 3D mold)





TECHNICAL STANDARD

TECHNICAL CHARACTERISTICS STANDARD TEST METHOD STANDARD PRESCRIBED VALUES MAX GLORY VALUES
Measurement and surface apperance
Length EN ISO 10545-2 ± 0.5% ± 0.5%
Width EN ISO 10545-2 ± 0.5% ± 0.5%
Thickness EN ISO 10545-2 ± 5%  ± 5%
Physical Properties
Water absorption EN ISO 10545-3 14 – 18% 15.8%
Breaking strength EN ISO 10545-4 ≥600N ≥1139N
Modulus of rupture determination of crazing resistance for glazed tiles GB/T 3810.11-2006 After test the samples have not any crazing
Chemincal properties

Chemical resistance
Resistance to household chemicals

 EN ISO 10545-13 Minimum GB GA

Resistance to staining

 EN ISO 10545-14 Minimum Class 3 Class 5

MOSAIC SUBWAY TILES

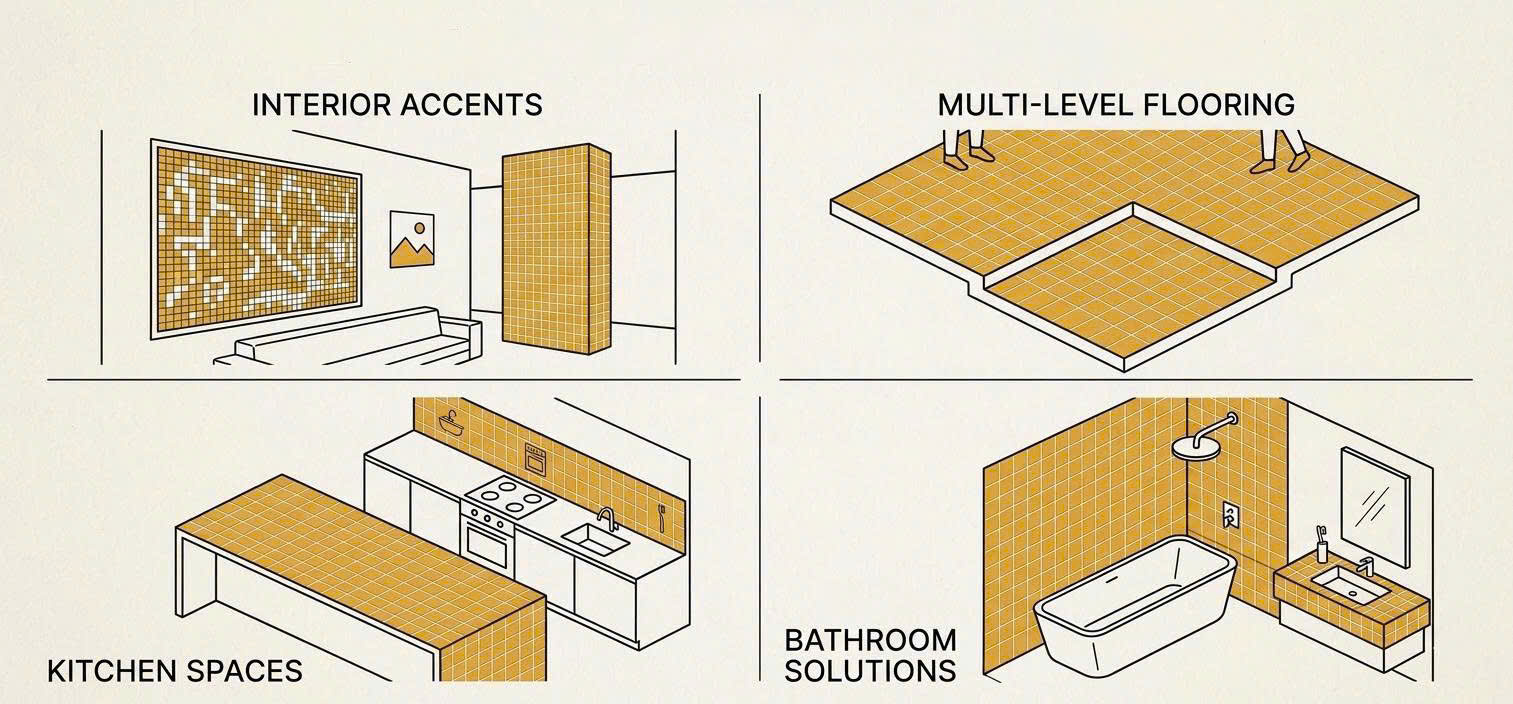

All-Space Versatility

Boasting exceptional versatility across all surfaces, our Mosaic tiles are the perfect solution for any space – from artistic accent walls to high-endurance areas like floors, kitchens, and bathrooms.
